Circulators & Isolators


Circulators & Isolators for Radiocommunication system

⇒ RF circulator is a three-port ferromagnetic passive device used to control the direction of signal flow in a circuit (low cost alternative to expensive cavity duplexers).

⇒ RF isolator is a two-port ferromagnetic passive device with one load and protect your application from excessive signal reflection, dual isolator can be use for higher isolation level.

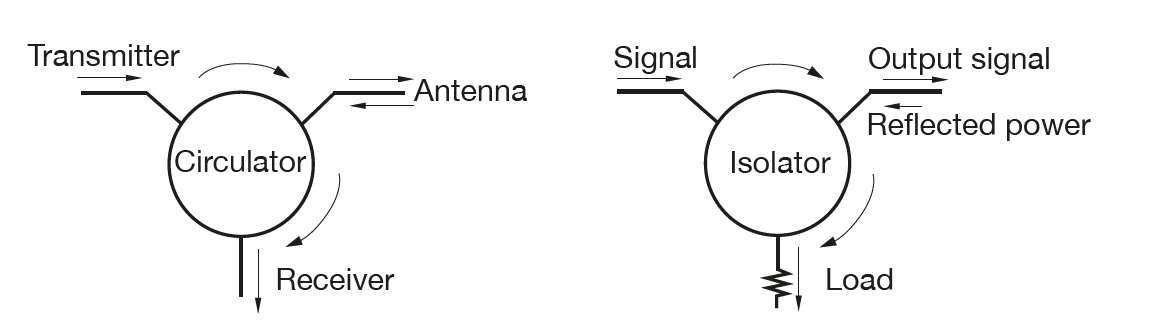

drawing isolator

Catalog download :
Circulators ed 7.1-25mai2021
